How to Retrofit Heated Steering Wheels into Non-Equipped Cars

We’ve seen hundreds of steering wheel upgrades in the last decade and this fallacy never goes away – it’s as if they think you can just replace the old steering wheel with a new one. It rarely is. Modern cars are connected with steering controls via CAN Bus, LIN communication, steering angle sensors, body control module (BCM), airbags, clocksprings, and software coding. If you do not have one part the heating function is basically useless. It will just be a costly decoration.

So can you put a steering wheel in a car?

Yes you can do this provided the cars electrical system’s able to handle a heated steering wheel.

Many installers advertise every heated steering wheel conversion kit as “plug-and-play.” I disagree. That’s marketing language, not engineering language.

A genuine heated steering wheel retrofit typically falls into three categories:

The difference between success and failure almost always comes down to electronics—not leather or carbon fiber.

I learned this after seeing retrofit shops replace perfectly good steering wheels, only to discover that the vehicle lacked the required Body Control Module configuration. The wheel heated perfectly on the workbench. Inside the vehicle? Nothing happened.

That isn’t unusual.

Before you begin, check whether or not your vehicle is suitable for retrofits.

Vehicle manufacturers develop a steering wheel as a smart module instead of a mechanical piece.

A modern heated steering system commonly includes:

• Heated steering wheel assembly
• Heating control module
• Heated steering wheel wiring harness
• Clock spring capable of carrying additional current

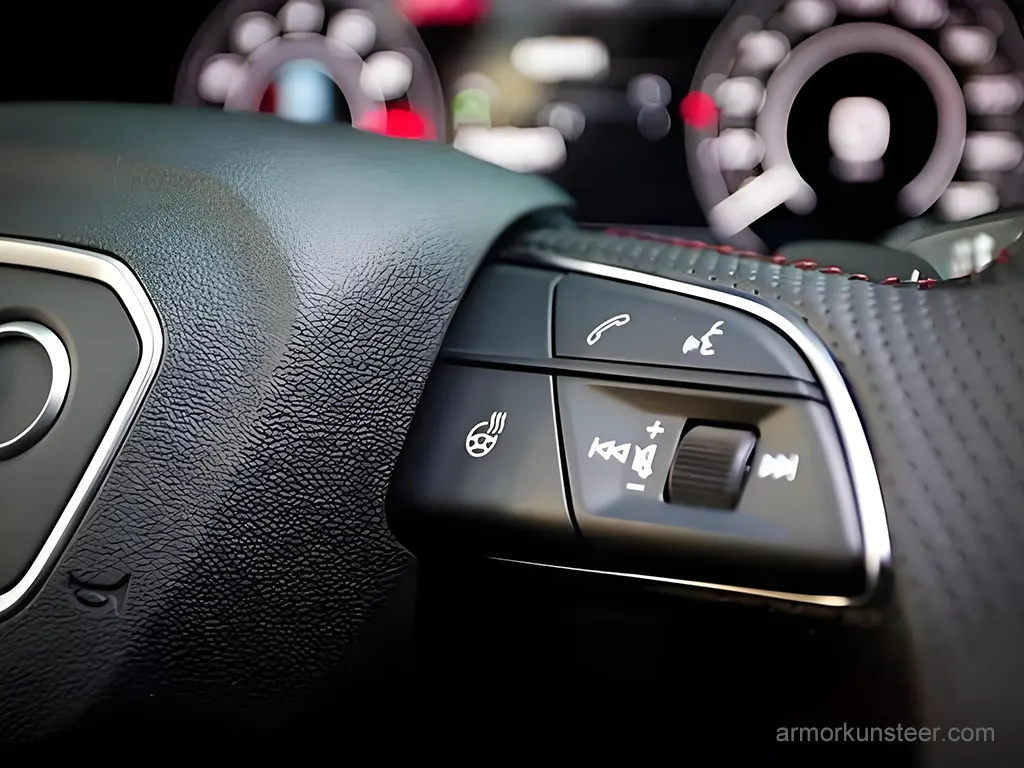

• Steering wheel heating switch
• Body Control Module (BCM)
• CAN Bus communication
• ECU or BCM coding
• Fuse and relay

Without one or more of these components your retrofit heated steering wheel project instantly becomes more difficult.

Most of the newer GM platforms tend to have greater retrofit potential, as do the BMW F-Series, Mercedes-Benz W213, Audi B9, Porsche 992, and Toyota Land Cruiser 300.
Older economy vehicles frequently do not.

OEM vs Aftermarket Heated Steering Wheel

Short answer.

OEM isn’t automatically better.

People often assume an OEM heated steering wheel upgrade is always the safest choice. Mechanically, that’s true. Financially, not necessarily.

These are now using forged carbon fiber, Nappa leather, Alcantara and LED shift indicators and integrated heating elements that are now comparable to factory-installed.

But the question isn’t OEM vs. aftermarket.

It’s whether your vehicle can support either solution without electrical compromises.

Why Wiring Is Usually the Hardest Part

Here’s the uncomfortable truth.

The steering wheel itself is rarely the problem.

The wiring is.

Most failed installations happen because installers underestimate the heated steering wheel wiring harness requirements.

Heating elements typically draw between 30W and 60W depending on ambient temperature control and resistance values.

That current must safely pass through:

• Clock spring
• Connector pins
• Steering column wiring
• BCM outputs
• Relay circuits

Vehicles without factory heating often lack the necessary conductors inside the clock spring altogether.

Installing a heated wheel onto a non-heated clock spring almost guarantees failure.

A Real OEM Retrofit Example

This surprised many technicians.

The global semiconductor shortage was affecting cars from General Motors, including those for 2022-2023 which were being shipped with heated steering wheels but no heated steering wheels. GM finally launched an official Heated Steering Wheel Retrofit Program to replace the steering wheel assemblies as they became available. The program included several Cadillac, Chevrolet and GMC and Buick models retrofitted by the dealers, and it shows that even the manufacturer has a structured retrofit procedure and not just a simple software install. GM’s customer satisfaction program provides replacement steering wheel assemblies for eligible vehicles, the official NHTSA service bulletin said. (NHTSA)

That tells us something important.

Even OEM engineers consider steering wheel heating a system—not merely a steering wheel.

How to Install a Heated Steering Wheel

People usually ask for installation steps.

I think they should ask different questions first.

1. Does the BCM support steering wheel heating?
2. Is the clock spring compatible?
3. Does the airbag match?
4. Is coding required?
5. Is LIN or CAN communication already enabled?

Only after those answers are known should installation begin.

A simplified workflow looks like this:

• Disconnect the battery.
• Remove the airbag module.
• Remove the original steering wheel.
• Install compatible heated steering wheel.
• Replace the clock spring if required.
• Install heating switch.
• Connect the wiring harness.
• Program BCM or gateway module.
• Verify diagnostic communication.
• Test heating operation under load.

Skipping software coding is often why heating never activates.

Cost Breakdown

Pricing varies dramatically.

Complete projects typically range between $900 and $2,500 depending on vehicle complexity.

Luxury German vehicles usually sit at the upper end.

Common Mistakes I See

Experience matters.

Not because removing an airbag is especially difficult, but because diagnosing communication faults requires manufacturer-level diagnostic software.

The biggest mistakes include:

• Buying incompatible steering wheels
• Ignoring airbag compatibility
• Reusing the wrong clock spring
• Installing incorrect LIN modules
• Skipping BCM programming
• Purchasing low-quality heating elements
• Assuming every trim level shares identical wiring

We’ve seen projects delayed for weeks because one connector had two fewer pins than expected.

That’s all it took.

FAQs

Can a heated steering wheel be fitted in a car?

Yes. Most cars can have a heated steering wheel added if they have compatible steering electronics, wiring, clock spring, control modules and software. Some versions require replacement of the hardware and others are more complex and involve extensive changes to the electric wiring and programming of the ECU to ensure the unit works correctly to heat the vehicle.

What does a heated steering wheel retrofit involve?

A heated steering wheel retrofit is the process of installing compatible steering wheel heating hardware, electrical components, wiring and factory software calibration to achieve the same level of heating performance as a vehicle shipped with a factory-installed steering wheel heating system.

Can an aftermarket heated steering wheel be trusted?

Yes. It is possible to build a high-quality aftermarket heated steering wheel that is just as reliable as the factory wheels, if it features automotive-grade heated elements, good leather or carbon fibre, good insulation and is professionally installed with quality electrical components.

Do I need a heated steering wheel conversion kit?

Usually, yes. Many vehicles will need the additional hardware and parts necessary for the heated steering wheel conversion kit, although a steering wheel conversion kit includes the major hardware that needs to be installed.

What is the installation time?

Installation times of 4-8 hours are typical for most professional installations, depending on vehicle architecture, electrical complexity, program requirements, and replacement of additional components, such as the BCM and/or steering column wiring.

Final Thoughts

I don’t believe that the primary issue of finding a heated steering wheel is any longer around.

The real challenge is comprehending all that lies behind it.

If you want to switch to a heated steering wheel, don’t pick leather, carbon fiber or price, but vehicle compatibility instead. Once you have the electrical architecture set, you can make an easy engineering decision between OEM heated steering wheel or high quality aftermarket heated steering wheel without having to guess at all the costs.
